E-STREAM EVO AM 4 27,5+


Description

OFF-ROAD WITHOUT END

Technical specifications


EN: Motor-Hersteller Brose
Motor -
EN: Motor-Typ -
EN: Motor-Leistung -
EN: Motor-Unterstützung up to 25 km/h
EN: Akku-Hersteller BMZ
EN: Akku-Typ Lithium Ionen
EN: Akku-Spannung (Volt) 36 V
Display BLOKS 14D
EN: Rahmenmaterial Alloy
EN: Rahmenhöhe 41 cm, 49 cm, 54 cm, 44 cm
Wheel size 27,5+ inch
Fork FOX Float 36 Rythm Grip
Rear Shock FOX Float DPS, 3pos.
Headset FSA Orbit 1.5ZS (No. 57)
EN: Schaltwerk Shimano XT RD-M8100-SGS
Derailleur Shifter Shimano XT SL M8100 I Spec EV
EN: Gänge 12 speed derailleur gears
EN: Kurbelgarnitur FSA CK-745/IS
Cassette Shimano SLX CS-M7100 10-51T
Brakes Shimano XT BR-M8120 Hydraulic Disc Brake
Saddle BULLS 1216HRN
Seatpost Jovial DP-01Z, 30,9mm
Chain Shimano CN-M7100
Rims BULLS AS-T35-N
Front hub Shimano HB-MT400
Rear hub Shimano FH MT510 B BOOST
Tires Schwalbe Hans Dampf Evo, SnakeSkin,TLE, Apex, fold, ADDIX Speedgrip
Handlebar Kalloy HB-RB12W-ENM
Stem MonkeyLink AS-ML2
Pedals Wellgo ZZE-01M

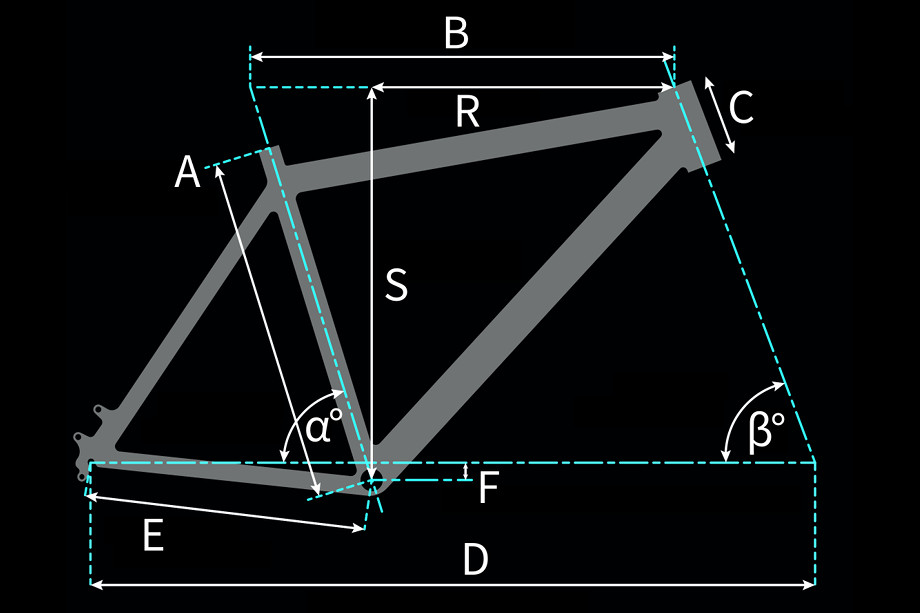

FRAME GEOMETRIES

Frame Height 41 cm 41 cm 44 cm 49 cm 49 cm 54 cm 54 cm
Seattube length A 410 mm 410 mm 440 mm 490 mm 490 mm 540 mm 540 mm
Toptube length B 590 mm 590 mm 604 mm 623 mm 623 mm 642 mm 642 mm
Head Tube C 110 mm 110 mm 110 mm 125 mm 125 mm 140 mm 140 mm
Wheelbase D 1177.0 mm 1177.0 mm 1191.0 mm 1212.0 mm 1212.0 mm 1233.0 mm 1233.0 mm
Chain strut E 460 mm 460 mm 460 mm 460 mm 460 mm 460 mm 460 mm
Crank Offset F 7 mm 7 mm 7 mm 7 mm 7 mm 7 mm 7 mm
Reach R 421 mm 421 mm 435 mm 450 mm 450 mm 465 mm 465 mm
Stack S 590 mm 590 mm 590 mm 603 mm 603 mm 618 mm 618 mm
Seating angle α 74.0° 74.0° 74.0° 74.0° 74.0° 74.0° 74.0°
Steering angle β 67.5° 67.5° 67.5° 67.5° 67.5° 67.5° 67.5°

$7,899.00 $7,499.00

Bi-weekly Payments (tax included) $39.73

Inquire About Product
